React Native Core SDK

The Core SDK is an HTTP networking library for use in React Native. Core helps developers to quickly and easily fetch data from their instance of the dotstudioPRO CMS, so they can focus on the UI and UX of their application. Core includes first-class TypeScript support.

Requirements
Installation
How to Use
Features
Classes

Requirements

Platform	Minimum Version	Installation	Status
iOS	13.0+	CocoaPods	Fully Tested
tvOS	13.0+	CocoaPods	Fully Tested
Android	5.5		Fully Tested
Android TV	5.5		Fully Tested
Fire TV	5.5		Fully Tested

Installation

Use the below command to install the Core SDK in your React Native project:

npm install @dotstudiopro/core --force

The Core SDK requires a number of Native dependencies to be installed in order to function correctly. Use the following command to add the required dependencies to your React Native project.

npm install
react-native-auth0
react-native-default-preference
react-native-device-info
react-native-fast-image
react-native-linear-gradient
react-native-localize
react-native-user-agent

You also need to install below customized package for React native TV support.

npm install https://github.com/dotstudiopro/react-native-encrypted-storage.git --force

How to Use

In order to make the Redux Store available to the React components in your Application, DPROStore will need to be rendered at the top level, with the remainder of your app's component tree inside of it.

DPROContextProvider accepts a config object, with 3 required keys:

apiKey (string) - your dotstudioPRO API Key. Generate an API key by navigating to the Settings -> API Key section in dotstudioPRO. A read + write key is required for proper function of the Core SDK. The SDK will automatically perform any necessary authentication when a valid API key is supplied during initialization.
countryCode (string) - an ISO Alpha2 formatted two letter country code representing the user's country.
isSubscriptionApp (boolean) - whether or not your application includes subscription functionality

DPROContext Setup

<Provider store={DPROStore}>
  <DPROContextProvider config= {{
        apiKey: DOTSTUDIOPRO_API_KEY,
      }}>
      ...
  </DPROContextProvider>
</Provider>

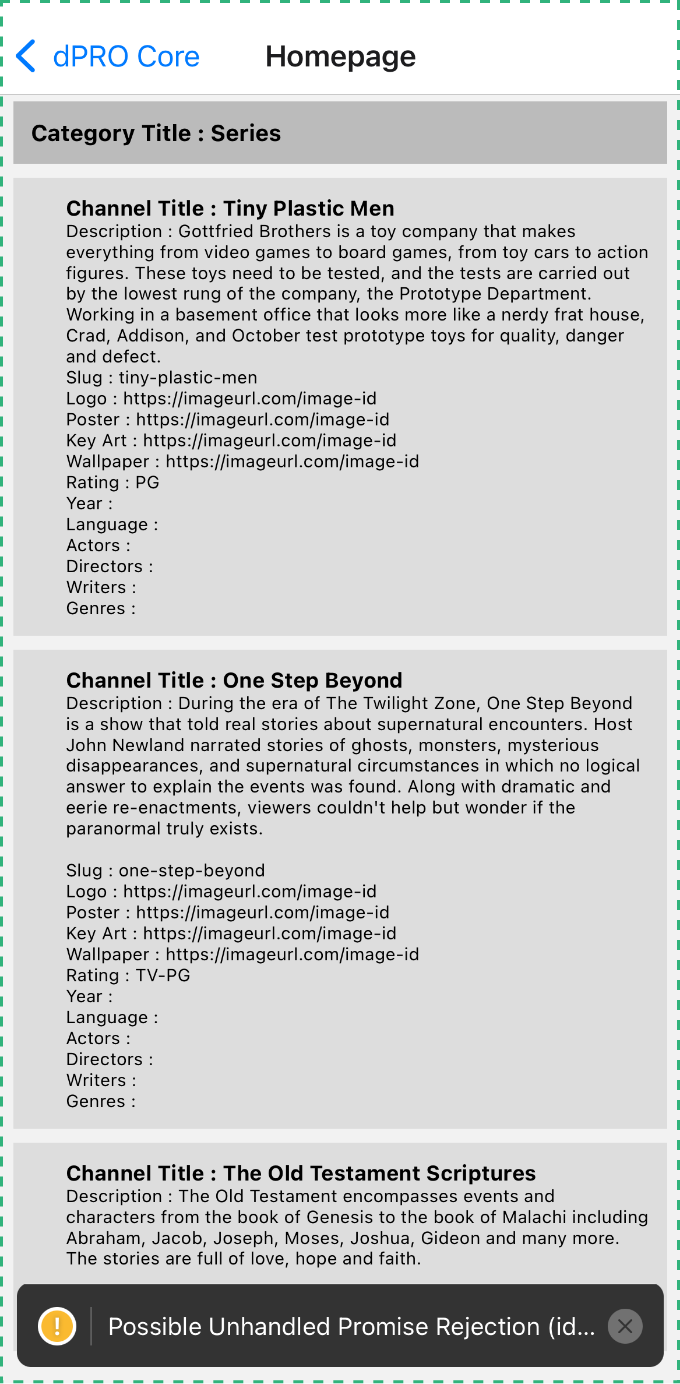

Homepage Data

To get Homepage data, dispatch getHomePageCategories():

dispatch(getHomePageCategories())

After the application state is updated, categories can be retrieved from DPROStore using:

DPROStore.getState().homePageReducer.categories

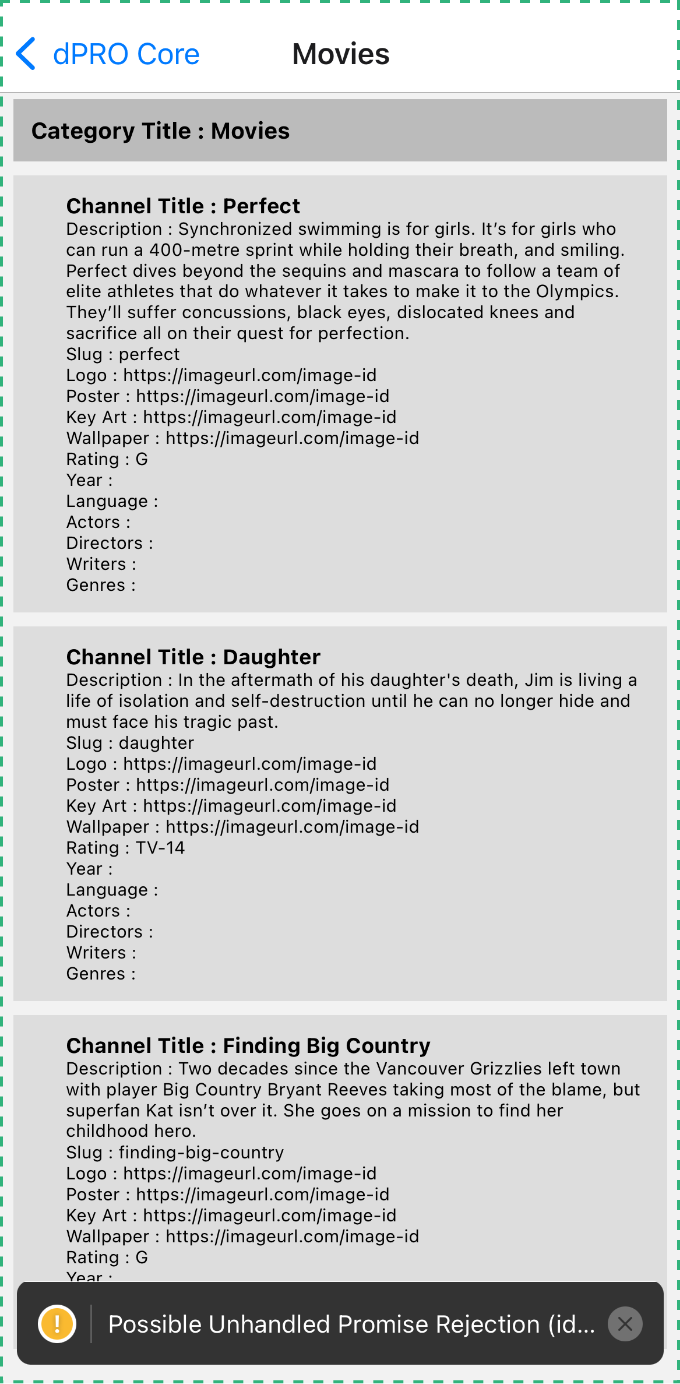

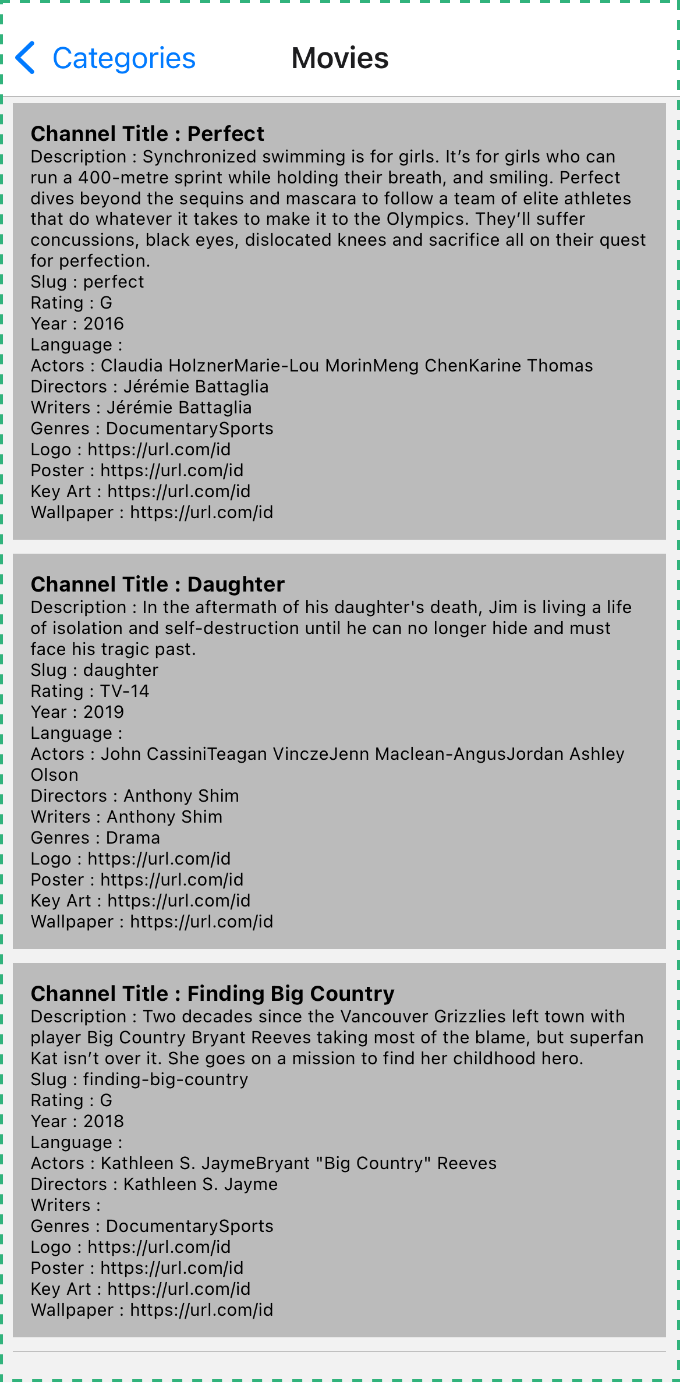

Movies Page Data

To get Movies page data, dispatch getMoviesPageCategories()

dispatch(getMoviesPageCategories())

After the application state is updated, Movie Page data can be retrieved from DPROStore using:

DPROStore.getState().moviesReducer.categories

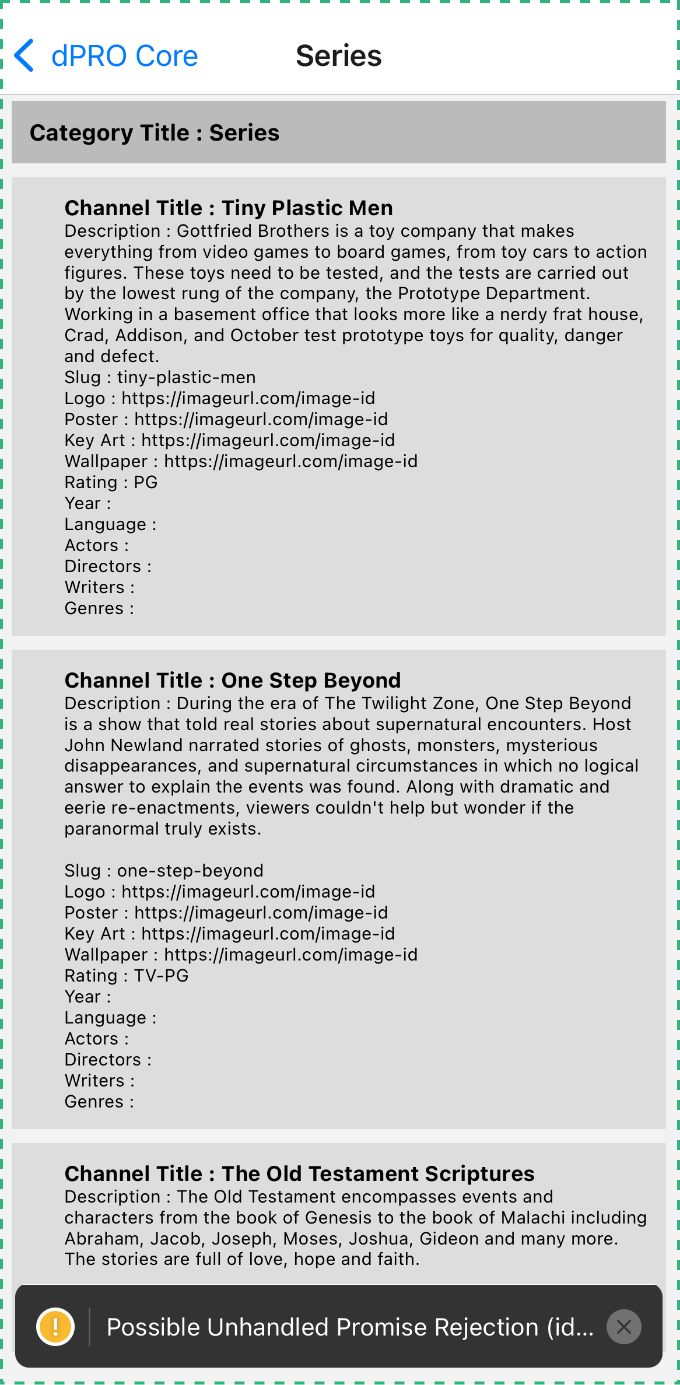

Series Page Data

To get Series page data, dispatch getSeriesPageCategories():

dispatch(getSeriesPageCategories())

After the application state is updated, Serues Page data can be retrieved from DPROStore using:

DPROStore.getState().seriesReducer
        .categories

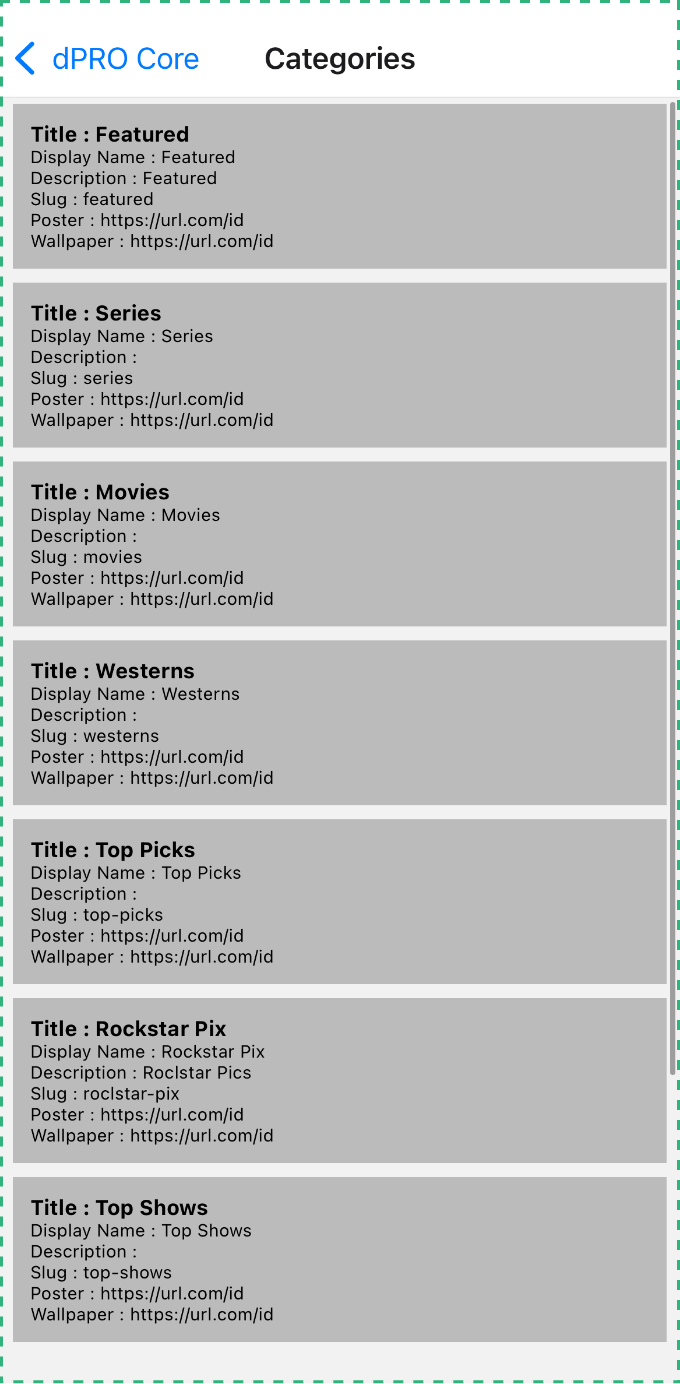

Categories Data

To get Categories data, dispatch getCategories()

dispatch(getCategories())

After the application state is updated, Category data can be retrieved from DPROStore using:

DPROStore.getState().categoriesReducer.categories

Category Data

To retrieve data for an individual category, dispatch getCategory(). This method accepts one argument, category (string), representing the slug of the category whose data you wish to retrieve.

dispatch(getCategory(category))

After the application state is updated, the category data can be retrieved from DPROStore using:

DPROStore.getState().
categoryReducer.category

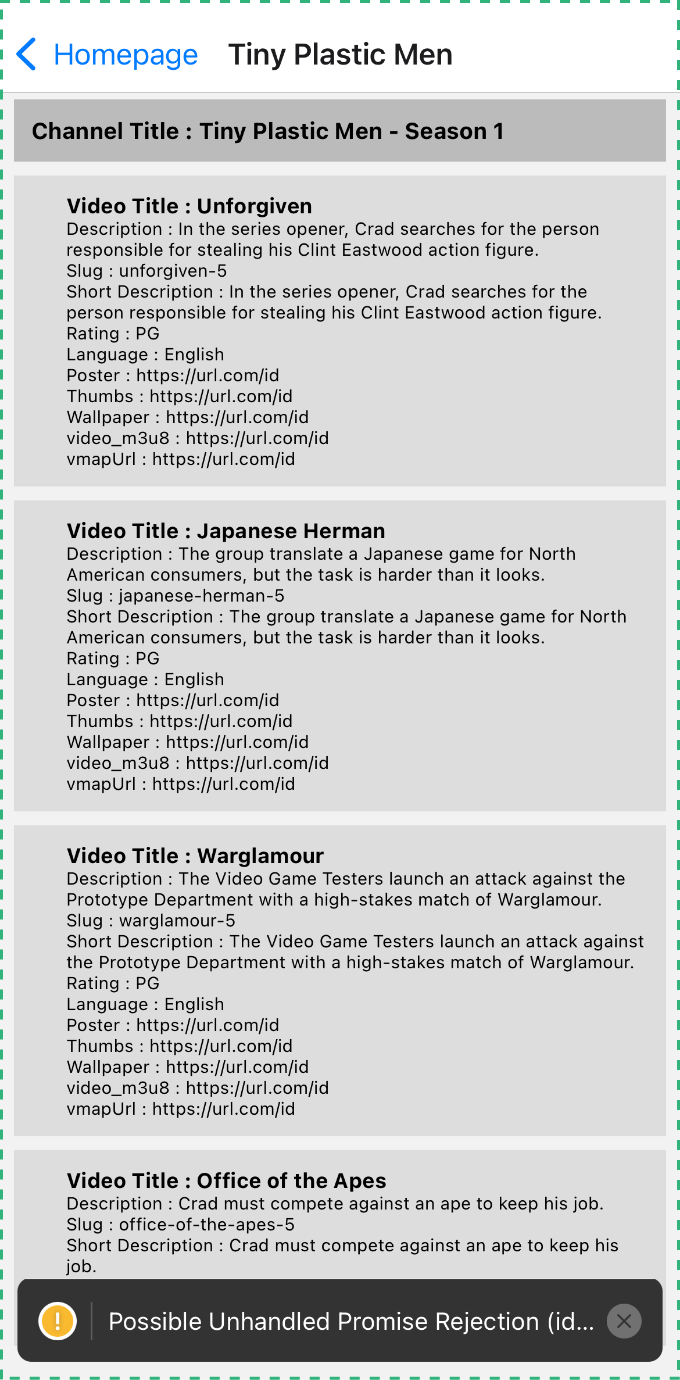

Channel Data

To retrieve data for an individual channel, dispatch spltPDPActions(). This method accepts one argument, channel (string), representing the slug of the channel whose data you wish to retrieve.

dispatch(spltPDPActions
(channel))

After the application state is updated, the channel data can be retrieved from DPROStore using:

DPROStore.getState().spltPDPReducer.spltChannel

EPG Channel Data

To retrieve EPG data, dispatch spltEPGActions(). This method accepts four arguments,

- from : Index at which to begin returning results (useful for pagination).

- size : How many channels to return in the results (useful for pagination).

- isLowerDevice : This flag indicates low end devices, so it only fetches 1 day of programs instead of full 7 days of programs.

- fromDay : Starting timestamp for the window in which programs are searched. Must be greater or equal than now.

dispatch(EPGActions
(from,size,
isLowerDevice
fromDay
))

After the application state is updated, EPG data can be retrieved from DPROStore using:

DPROStore.getState().EPGReducer.epgChannels

Features

The dotstudioPRO Mobile SDK has first-class support for TypeScript. The SDK fetches data from the API and creates typed Objects which it in turn passes to the UI.

Classes

dotstudioPRO allows users to organize content in a top-down taxonomy. To learn more about the taxonomy and understand how to categories your content, create channels & videos and more, please visit out Content Taxonomy article.

Below is a list of available classes and definitions of their data stores:

Key	Type	Description
strId	String	ID of the Category.
strName	String	Category name.
strDescription	String	Category description.
StrSlug	String	Category slug.
poster	String	Category poster image.
wallpaper	String	Category wallpaper image.
display_name	String	Category display name.
channels	Array	Array of all channels assigned to the Category.

ParentCategory (extends Category)

Contains an array of child categories. Useful for more advanced UI use-cases where multiple "levels" of categories are required.

Key	Type	Description
categories	Array	Array of categories.

ContinueWatchingCategory (extends Category)

Contains an array of ContinueWatchingChannel, or the "continue watching"/resumptions data for a specific user.

WatchlistCategory (extends Category)

Contains an array of any channels added to "My List" for a specific user.

Channel

Represents a Channel in the dotstudioPRO CMS. This class also contains any child channels, playlists, or videos assigned to a specific channel.

Key	Type	Description
strId	String	Channel ID.
strTitle	String	Channel title.
strDescription	String	Channel description.
StrSlug	String	Channel slug.
poster	String	Poster image.
wallpaper	String	Wallpaper image.
spotlight_poster	String	Key-Art image.
logo	String	Channel logo.
rating	String	Content rating
year	String	Year of release or production.
language	String	Content language.
actors	Array	Array of actors appearing in content.
directors	Array	Array of directors for content.
writers	Array	Array of wroters for content.
tags	Array	Array of tags assigned to the channel.
genres	Array	Array of genres assigned to the channel.

The following child classes can inherit the properties of Channel.

VideoChannel (extends Channel)

Contains a single VOD video, most commonly representing a VOD Film title.

Key	Type	Description
video	Video	Object instance of Video class.

PlaylistChannel (extends Channel)

Contains an array of VOD videos, commonly representing a season of a series.

Key	Type	Description
spltVideos	Array	Array containing instances of the Video class.

ParentChannel (extends Channel)

Contains an array of child channels, most commonly representing a series.

Key	Type	Description
channels	Array	Array containing instances of the Channel class.

EPGChannel (extends Channel)

Contains a Live Linear video, and an array of SPLTEPGChannelProgram objects representing the EPG programming metadata.

Key	Type	Description
spltVideo	Video	Object instance of Video class.
spltEPGChannelPrograms	Array	Array cotaining instances of the EPGChannelProgram class.

Video

Represents a single Video in the dotstudioPRO CMS.

Key	Type	Description
id	String	Video ID.
title	String	Video title.
description	String	Video description.
short_description	String	Video short description.
slug	String	Video slug.
poster	String	Video poster image.
wallpaper	String	Video wallpaper image.
thumb	String	Video thumbnail image.
thumbs	Array	Array of alternative video thumbnails.
video_m3u8	String	HLS playback URL used for playout.
vmapUrl	String	VMAP URL containign the ad schedule for AVOD videos. Advertising must be configured in the CMS for this value to be present in the response.
isLiveStream	Bool	Indicates whether the video is a live stream.
genres	Array	Video genres.
language	String	Video language.
episode	String	Video episode number.
season	String	Video season number.

EPGChannelProgram

Represents a single Live Linear Channel's Electronic Program Guide (EPG) & program metadata.

Key	Type	Description
strId	String	Program ID.
program_title	String	Program title.
program_language	String	Program language.
program_description	String	Program description.
start_timestamp	number	Program Start Time (in seconds from 1 January, 1970).
end_timestamp	number	Program End Time (in seconds from 1 January, 1970).
duration	number	Program duration (in seconds).

Updated November 08, 2023 16:07
