Roku On-Demand SDK

The Roku On-Demand SDK is an UI component library written in Brightscript to quickly display diverse UI pages, categories, and channels. This SDK is dependent on the Roku Core SDK.

• Features
• Requirements
• Installation
• How to Use
• Properties

Features

The dotstudioPRO Roku On-Demand SDK is equipped with robust capabilities to seamlessly render various UI components, presenting UI Pages, Categories, and Channels. Leveraging the Roku Core SDK, the Roku On-Demand SDK efficiently retrieves data from the API, ensuring a streamlined data-fetching process.

Key Features:

• Home, Movies & Series Pages Support: The Roku On-Demand SDK excels in rendering essential UI components of home page, movie pages, and series pages, offering a versatile viewing experience.

• Category Page UI Support: The Roku On-Demand SDK ensures an organized and visually appealing presentation of content categories.

• Channel Page UI (PDP) Support: The Roku On-Demand SDK facilitates the display of detailed Channel Page UI, enhancing the user experience by providing comprehensive information on specific channels.

• Callback Handling: The Roku On-Demand SDK adeptly manages necessary callbacks, ensuring seamless interaction and responsiveness within the application.

• Lazy Loading for Enhanced Experience: The Roku On-Demand SDK incorporates lazy loading of data, efficiently loading content as needed for a more user-friendly interface.

Requirements

Platform	Minimum Version	Status
Roku	11.0+	Fully Tested

Installation

Roku Core SDK must be installed to start using this SDK.
Utilize the following commands to seamlessly install the Roku On-Demand SDK into your Roku project:

git clone https://github.com/dotstudiopro/on-demand-roku

Copy the on-demand-roku/dotstudioPRO-on-demand folder into your channel so that the path to the folder is pkg:/components/dotstudioPRO-on-demand

How to Use

Page Component

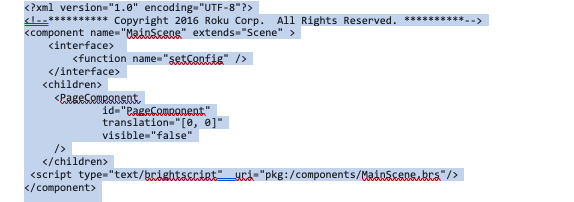

To incorporate the PageComponent into your Roku Scene xml file:

After add PageComponent in xml file provide below necessary inputs in Scene .brs file

Function init()
  m.top.setFocus(true)
  m.PageComponent = m.top.FindNode("PageComponent")
  m.PageComponent.visible = true
  Carouselconfig = {
      width: Int(420),
      height: Int(630),
      rowItemSize:[1920,1080],
      circledisableduri:"pkg:/images/circledisabled.png",
      circleactive:"pkg:/images/circleactive.png",
      showFirstRailAsCarousel:true
    }
    Channelsconfig = {
      width: Int(292),
      height: Int(438),
      rowItemSpacing:[20,0],
      itemSize: [1920,500],
    }
   pagetype={
      pagetype : "homepage"
   }
   m.PageComponent.CallFunc("setConfig",Carouselconfig,Channelsconfig,pagetype)
End Function

Properties

Id	Key	Type	Description
1.	pagetype	Home / Movies / Series)	dotstudioPRO Channel retrieved using Roku Core SDK. or newly created Channel Object with slug
2.	showFirstRailAsCarousel	True / False	Indicates if First Category data needs to be shown as Carousel.
3.	Carouselconfig	Object	Carousel Configuration.
4.	Channelsconfig	Number	Channels Configuration.
5.	onSelectChannel	Callback	Callback when User selects Channel.

Updated January 16, 2024 15:34
